GLASS FUSED STEEL TANKS

GLASS FUSED STEEL TANKS


GFS Steel Tank technology is one the premier coating technology in the storage tanks market.

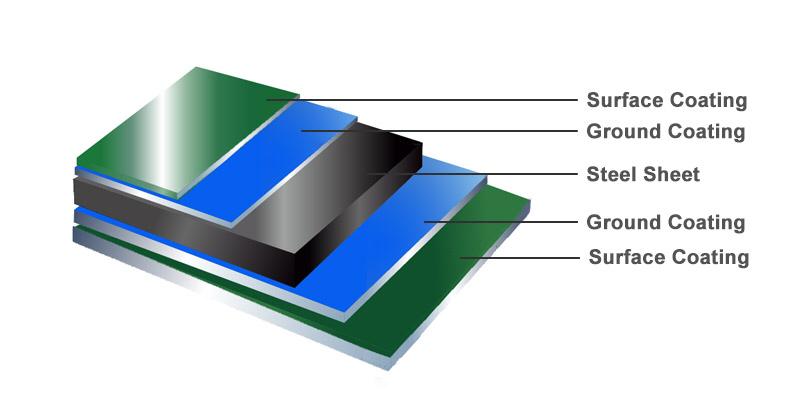

After firing at 800°c-950°c, the molten glass reacts with steel plate surface to form an inert and inorganic bond, which combines the strength and flexibility of steel and outstanding corrosion resistance of glass, so GFS tanks can provide many advantages over standard welded and epoxy painted storage tanks.

ADVANTAGES:

• Tank volume can easily be expanded
• Superior corrosion resistance
• Service life is more than 30years
• Elegant appearance
• Excellent anti-corrosion performance
• It can realize relocation, expansion and recycling


TANK APPLICATIONS:

• Industrial Water Treatment application
• Food Processing Industry
• Pharmaceutical Industry
• Sewage Reactors
• Biogas Digester
• Membrane Biogas Holder


TANK SPECIFICATIONS:

Coating Color: - Standard dark green or blue
Coating Thickness: - 0.25-0.45 mm
Acid and Alkalinity: - Standard ph: 3-11, Specific ph: 1-14
Adhesion: - 3.450N/cm
Hardness: - 6.0(Moh’s)
Service Life: - 30years
Permeability: - Gas Liquid Impermeable
Easy to Clean: - Smooth, Glossy, Inert, Anti-adhesion
Corrosion Resistance: - Excellent, suitable for waste water, salt water, sea water, inorganic compounds




OUR PREFAB TANKS APPLICATIONS


           FM Global Tanks
          FM Approved Fire Tanks
            Fire Fighting Tanks
          Process Water Tanks
            Domestic Water Tanks
          DM Water Tanks
            Liquid Storage Tanks
           Rain Water Collection Tanks
           Potable Water Tanks
          Aeration Tanks
          Raw Water Tanks
          Waste Water Tanks
           Effluent Treatment Tanks
          Treated Water Tanks
          Equalization Tanks
           Agriculture Tanks
          Aquaculture Tanks
          Zinc Aluminium Steel Tanks
          Bolted Tanks
          ZnAI Tanks

STORE WATER FOR GOOD FUTURE
